Shotcrete concrete, also called spray concrete, a highly versatile and durable construction material, has gained widespread use in various applications, such as tunnelling and slope stabilisation, swimming pool construction and architectural facades, to mention a few. Unlike conventional concrete, which is poured and then compacted, shotcrete is pneumatically projected onto surfaces at high velocity, providing superior adhesion and strength. Let’s explore the characteristics, types, applications, and advantages of shotcrete in modern construction.
What is Shotcrete Concrete?
Shotcrete is a method of applying concrete using a high-pressure hose and nozzle system. This technique allows concrete to be sprayed directly onto surfaces without the need for formwork, making it highly efficient for complex and irregular structures. The process was first developed in the early 1900s and has since evolved into a reliable method used in civil, structural, and geotechnical engineering.
There are two primary types of shotcrete:
Dry Mix Shotcrete (DMS): The dry concrete ingredients (cement, sand, and aggregates) are mixed at the site, and water is added at the nozzle before application. This allows for precise control over water content and reduces material waste.
Wet Mix Shotcrete (WMS): In this approach, all ingredients, including water are premixed before being pumped through the hose. The wet mixture is then projected using compressed air. This method offers better workability and higher production rates.
Applications of Shotcrete Concrete
Shotcrete is used in a wide range of construction because of its adaptability and strength. Here are some applications shotcrete is used for:
- Tunneling and Underground Construction: This is widely used to reinforce tunnel walls, stabilise rock faces, and provide initial structure support in underground excavation projects.
- Slope Stabilisation: Engineers use shotcrete to prevent soil erosion and landslides by reinforcing slopes and embankments. It’s often combined with reinforcing elements like steel mesh or fibre reinforcement for added stability.

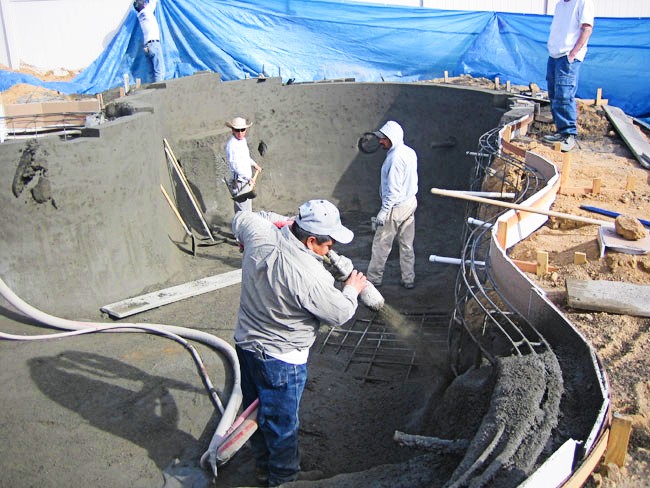

- Swimming Pools and Water Features: Shotcrete is an ideal choice for constructing durable, leakproof swimming pools with custom shapes and designs.
- Structural Repairs: Due to its excellent bonding properties, shotcrete is frequently used for repairing deteriorated concrete structures, such as bridges, parking garages, and dams.
- Architectural and Aesthetic Enhancements: Shotcrete allows for creative designs, such as artificial rock formations, sculptures, and decorative facades in theme parks and landscapes.
Advantages of Shotcrete Concrete
The popularity of shotcrete is attributed to its numerous benefits, including:
- High Strength and Durability: The high-velocity application compacts the material, leading to greater density, lower permeability, and enhanced structural integrity.
- Cost-Effectiveness: Eliminating the need for formwork reduces material and labour costs, making shotcrete an economical choice for many projects.
- Versatility: Shotcrete can be applied to complex shapes, making it suitable for challenging construction scenarios.
- Rapid Application: The spraying process allows for quicker placement and shorter construction timelines.
Shotcrete concrete is truly an efficient construction technique that continues to revolutionise the industry. Its strength, versatility, and ease of application make it a useful solution for modern engineering challenges.
